Greenland Data Sources

This page provides details of all data sources contributing to our Greenland data cube.

2.1. Data Source Overview

Our Greenland ice speed data cube is created from fourteen individual data sources:

  • SHIFT: 12-day snapshots over West Greenland. 2014 to 2026.
  • PROMICE: 24-day averages, Greenland-wide averages. 2016 to 2026 (updated every ~12 days).
  • MEaSUREs monthly: Monthly averages, Greenland-wide. 2015 to 2024.
  • MEaSUREs quarterly: Quarterly averages, Greenland-wide. 2014 to 2024.
  • MEaSUREs winter: Winter averages, Greenland-wide. 2000 to 2018 most years.
  • MEaSUREs annual: Annual averages, Greenland-wide. 2015 to 2024.
  • ITS_LIVE annual: Annual (calendar year) averages, Greenland-wide. 1985 to 2024.
  • Mouginot annual: Annual (July through June) averages, Greenland-wide. 1972 to 2017.
  • ENVEO annual: Annual (October through September) averages, Greenland-wide. 2014 to 2020.
  • ESA CCI winter: Predominantly winter (varying months) averages, Greenland-wide. 2013 to 2018.
  • ESA CCI ERS-1 (1991-1992): 1991/1992 winter snapshot, northern and northwestern Greenland.
  • ESA CCI ERS-2 (1995-1996): 1995/1996 winter snapshot, Greenland margin.
  • ESA CCI PALSAR: Five winter snapshots 2006/2007 to 2010/2011, Greenland margin.
  • ESA CCI ERS-1/2 & Envisat: 1991 to 2010 snapshots of selected basins.
  • ESA CCI CSK: 2012 to 2014 4-day snapshots of Jakobshavn Isbrae.
  • ESA CCI Sentinel-2: 2016 to 2017 snapshots of selected basins.
  • ESA CCI Sentinel-1: 2014 to 2017 snapshots of selected basins.

A summary of these data sources is shown in Figure 2.1 and each of the data sources are detailed in the sections below.

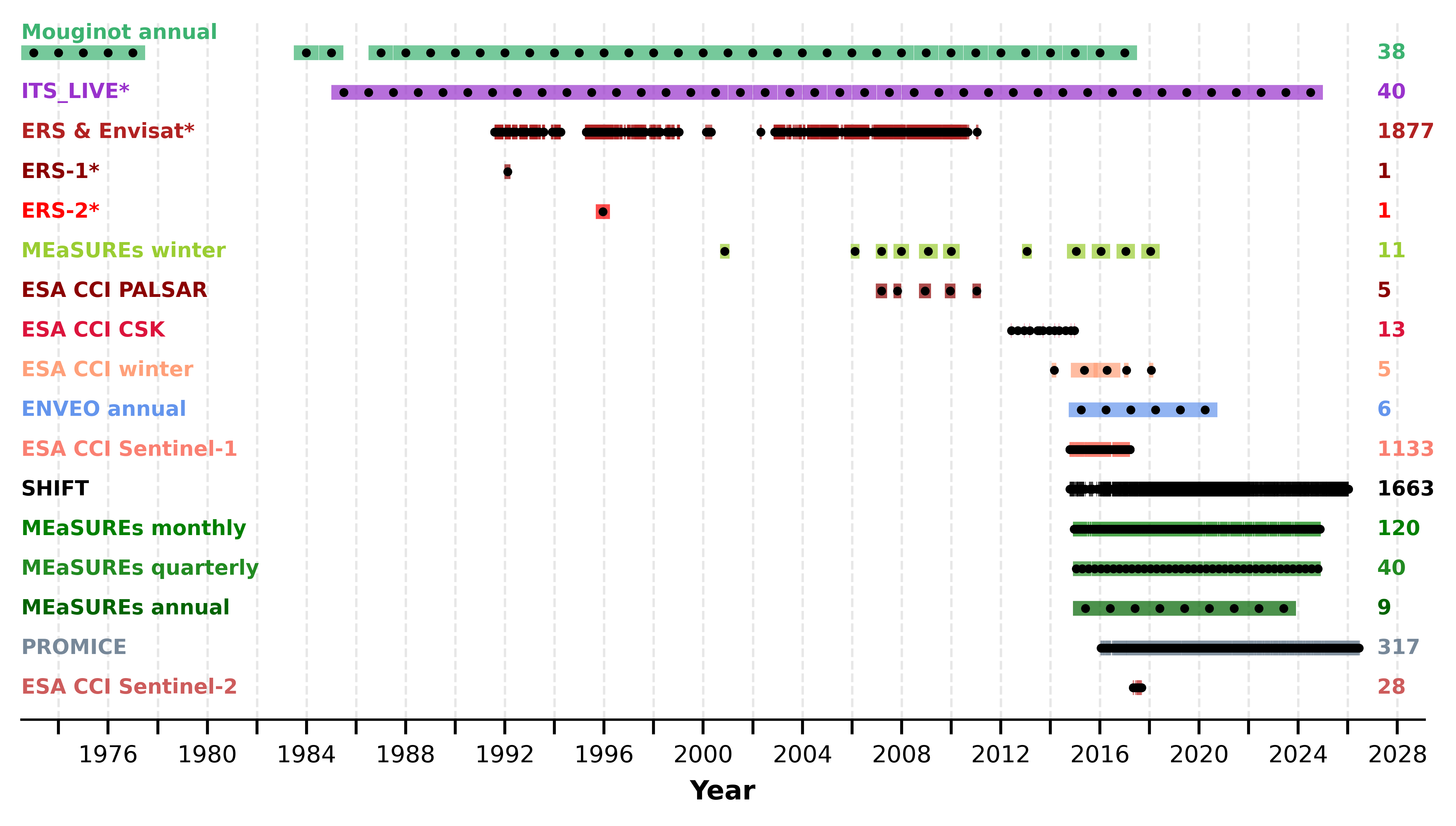

Data source timeline overview
Fig. 2.1: Timeseries overview of Greenland ice speed data sources.

2.2. SHIFT

The SHIFT data provide 12-day snapshots of ice speed in West Greenland derived from intensity tracking of Sentinel-1 image pairs from 2014 to 2026. The SHIFT processing pipeline is described in detail in the SHIFT Documentation Page.

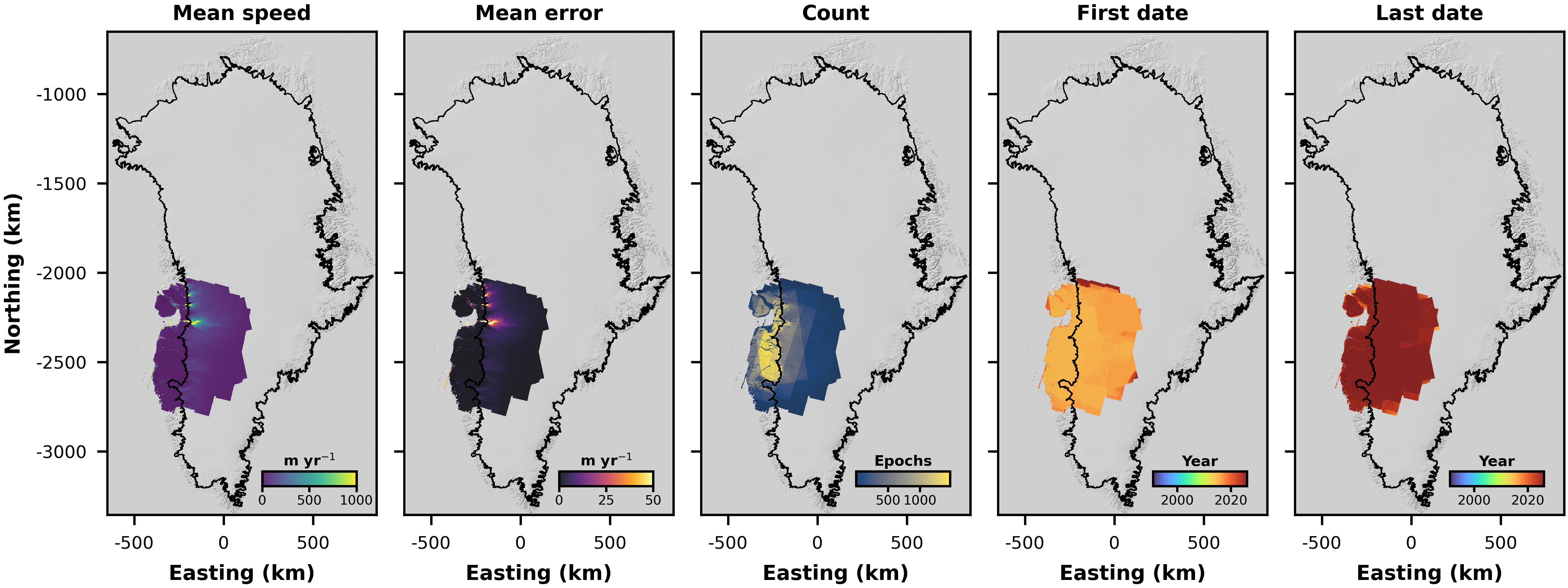

SHIFT data overview
Fig. 2.2: Overview of the Greenland SHIFT data.
Sole, A. J. and Davison, B. J. 2026. SHeffield Ice Flow Tracker (SHIFT) velocity data: West Greenland ice surface velocity fields derived from intensity tracking of Sentinel-1 Synthetic Aperture Radar image pairs. [Online]. Available from: https://doi.org/10.15131/shef.data.33113009.v1.
Davison, B.J., Sole, A.J., Cowton, T.R., Lea, J.M., Slater, D.A., Fahrner, D. and Nienow, P.W., 2020. Subglacial drainage evolution modulates seasonal ice flow variability of three tidewater glaciers in southwest Greenland. Journal of Geophysical Research: Earth Surface, 125(9), p.e2019JF005492. DOI: https://doi.org/10.1029/2019JF005492.

2.3. PROMICE

The PROMICE data provide 24-day (two consecutive Sentinel-1 cycles) averages of ice speed over Greenland derived from intensity tracking of Sentinel-1 image pairs from 2016 to 2026, with new 24-day averages added every 12 days. We use Edition 5 of the PROMICE mosaics here; these mosaics can be downloaded from the GEUS Dataverse repository. The PROMICE velocity processing pipeline is described in detail in Solgaard et al. (2021).

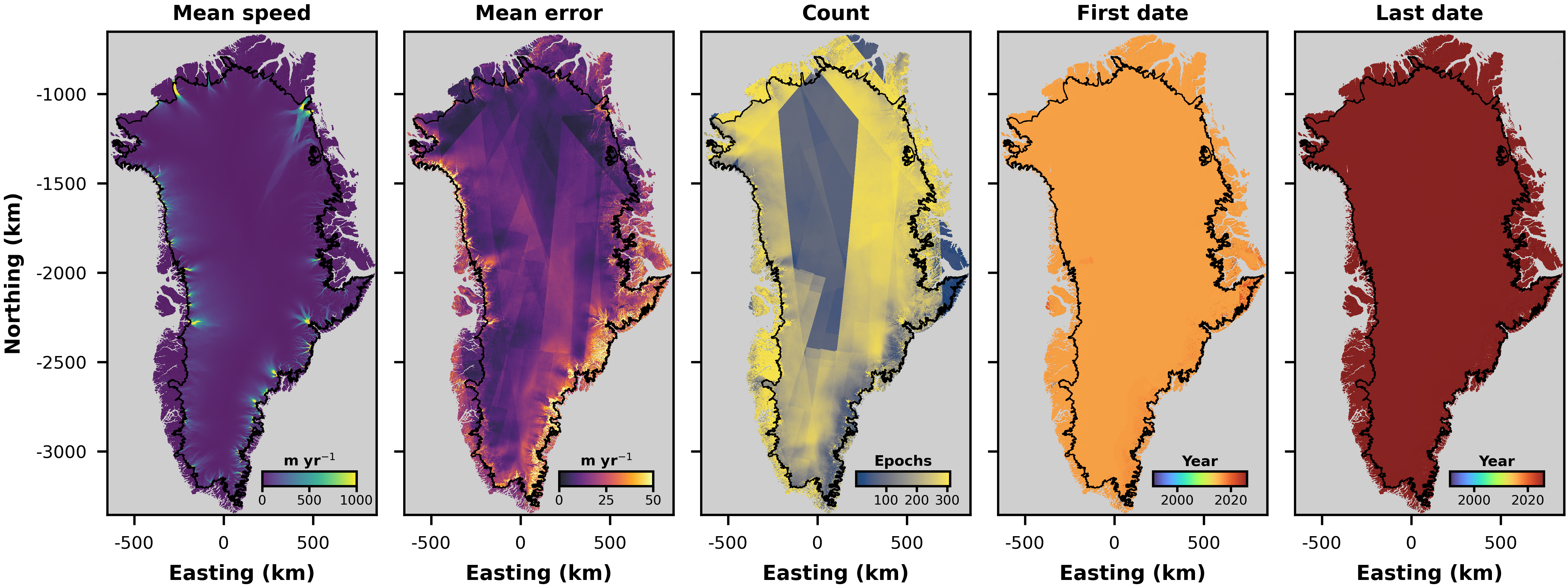

PROMICE data overview
Fig. 2.3: Overview of the Greenland PROMICE data.
Solgaard, A., Kusk, A., Merryman Boncori, J.P., Dall, J., Mankoff, K.D., Ahlstrøm, A.P., Andersen, S.B., Citterio, M., Karlsson, N.B., Kjeldsen, K.K. and Korsgaard, N.J., 2021. Greenland ice velocity maps from the PROMICE project. Earth System Science Data, 13(7), pp.3491-3512. DOI: https://doi.org/10.5194/essd-13-3491-2021.
Solgaard, Anne Munck; Kusk, Anders, 2026, "Greenland Ice Velocity from Sentinel-1 Edition 5", https://doi.org/10.22008/FK2/K70OPK, GEUS Dataverse, V6.

2.4. MEaSUREs monthly

The MEaSUREs data provide monthly averages of ice speed over Greenland derived from a combination of Interferometric SAR (InSAR) and intensity tracking of Sentinel-1 image pairs from 2015 to 2024. The MEaSUREs velocity processing pipeline is described in detail in Joughin et al. (2018).

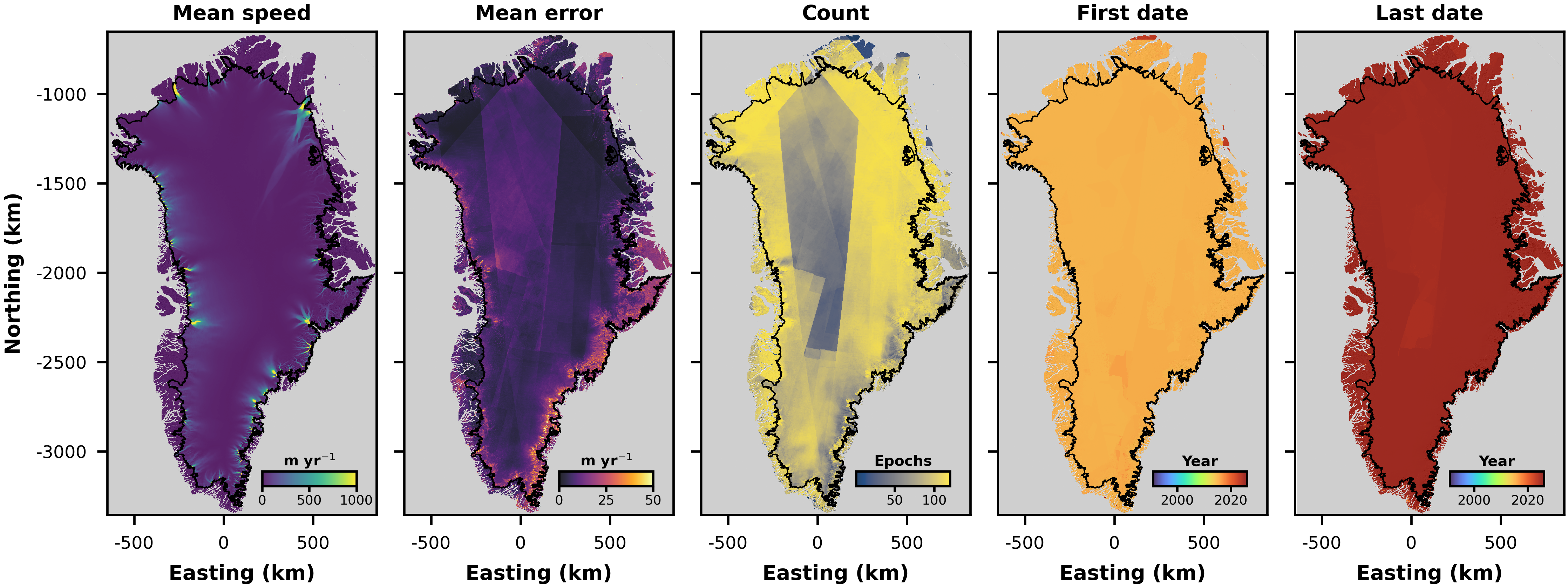

MEaSUREs monthly data overview
Fig. 2.4: Overview of the Greenland MEaSUREs monthly data.
Joughin, I. (2023). MEaSUREs Greenland Monthly Ice Sheet Velocity Mosaics from SAR and Landsat. (NSIDC-0731, Version 5). [Data Set]. Boulder, Colorado USA. NASA National Snow and Ice Data Center Distributed Active Archive Center. https://doi.org/10.5067/EGKZX6FXXM4P. Date Accessed 04-21-2026.
Joughin, I., B. Smith, I. Howat, T. Scambos, and T. Moon. 2010. Greenland flow variability from icesheet-wide velocity mapping, Journal of Glaciology. 56. 415-430. https://doi.org/10.3189/002214310792447734.
Joughin, I., B. Smith, and I. Howat. 2018. Greenland Ice Mapping Project: ice flow velocity variation at sub-monthly to decadal timescales, The Cryosphere. 12. 2211-2227. https://doi.org/10.5194/tc-12-2211-2018.

2.5. MEaSUREs quarterly

The MEaSUREs data provide quarterly averages of ice speed over Greenland derived from a combination of Interferometric SAR (InSAR) and intensity tracking of Sentinel-1 and TerraSAR-X/TanDEM-X imagery, plus feature tracking of optical imagery acquired by Landsat 8 and Landsat 9. The data are available from 1st December 2014 to 30th November 2024. The MEaSUREs velocity processing pipeline is described in detail in Joughin et al. (2023).

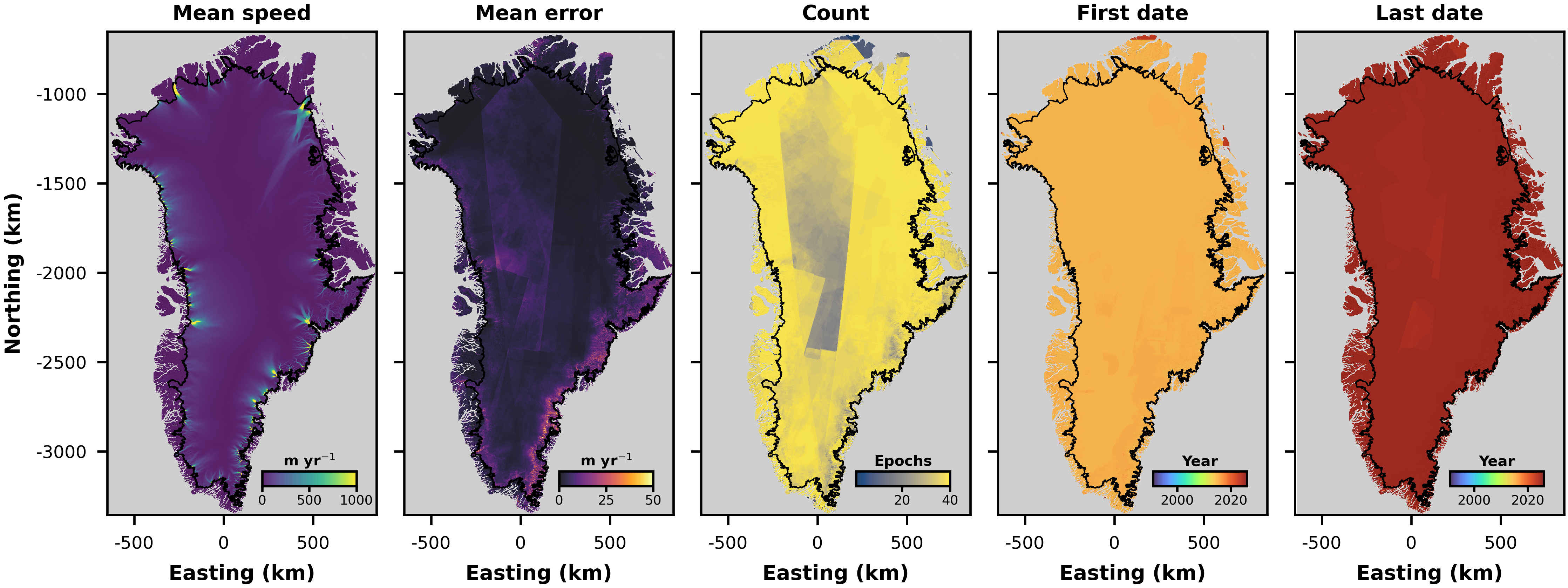

MEaSUREs quarterly data overview
Fig. 2.5: Overview of the Greenland MEaSUREs quarterly data.
Joughin, I. (2023). MEaSUREs Greenland Quarterly Ice Sheet Velocity Mosaics from SAR and Landsat. (NSIDC-0727, Version 5). [Data Set]. Boulder, Colorado USA. NASA National Snow and Ice Data Center Distributed Active Archive Center. https://doi.org/10.5067/V5KW64S63OSN. Date Accessed 04-21-2026.
Joughin, I., B. Smith, I. Howat, T. Scambos, and T. Moon. 2010. Greenland flow variability from icesheet-wide velocity mapping, Journal of Glaciology. 56. 415-430. https://doi.org/10.3189/002214310792447734.
Joughin, I., B. Smith, and I. Howat. 2018. Greenland Ice Mapping Project: ice flow velocity variation at sub-monthly to decadal timescales, The Cryosphere. 12. 2211-2227. https://doi.org/10.5194/tc-12-2211-2018.

2.6. MEaSUREs winter

The MEaSUREs data provide 'winter' averages of ice speed over Greenland derived from Interferometric SAR (InSAR) data obtained by RADARSAT-1, ALOS, TerraSAR-X/TanDEM-X and Sentinel-1A and Sentinel-1B. The data are available for the 2000/2001, 2005-2010, 2012/2013, and 2014-2018 winters. The MEaSUREs velocity processing pipeline is described in detail in Joughin et al. (2015).

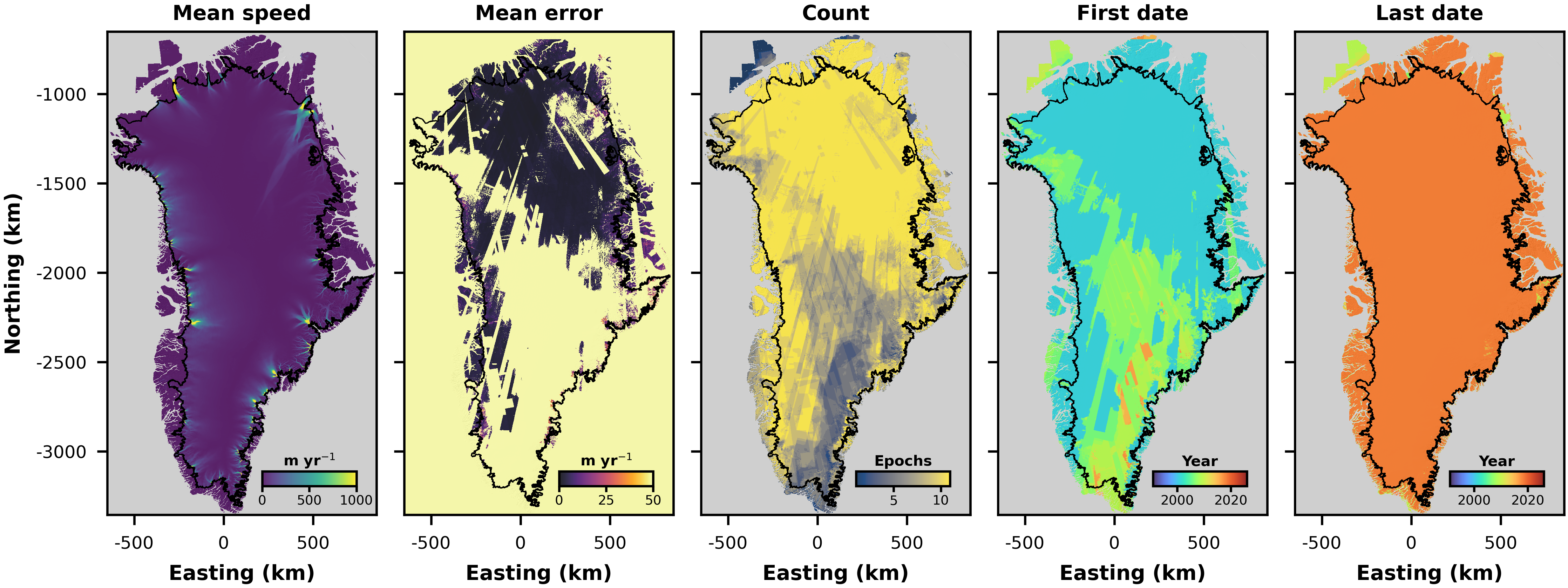

MEaSUREs winter data overview
Fig. 2.6: Overview of the Greenland MEaSUREs winter data.
Joughin, I., Smith, B., Howat, I. & Scambos, T. (2015). MEaSUREs Greenland Ice Sheet Velocity Map from InSAR Data. (NSIDC-0478, Version 2). [Data Set]. Boulder, Colorado USA. NASA National Snow and Ice Data Center Distributed Active Archive Center. https://doi.org/10.5067/OC7B04ZM9G6Q. Date Accessed 04-23-2026.
Joughin, I., B. Smith, I. Howat, T. Scambos, and T. Moon. 2010. Greenland flow variability from icesheet-wide velocity mapping, Journal of Glaciology. 56. 415-430. https://doi.org/10.3189/002214310792447734.
Joughin, I., B. Smith, and I. Howat. 2018. Greenland Ice Mapping Project: ice flow velocity variation at sub-monthly to decadal timescales, The Cryosphere. 12. 2211-2227. https://doi.org/10.5194/tc-12-2211-2018.

2.7. MEaSUREs annual

The MEaSUREs data provide annual averages of ice speed over Greenland derived from a combination of Interferometric SAR (InSAR) and intensity tracking of Sentinel-1 and TerraSAR-X/TanDEM-X imagery, plus feature tracking of optical imagery acquired by Landsat 8 and Landsat 9. The data are available from 1st December 2014 to 30th November 2023. The MEaSUREs velocity processing pipeline is described in detail in Joughin et al. (2023).

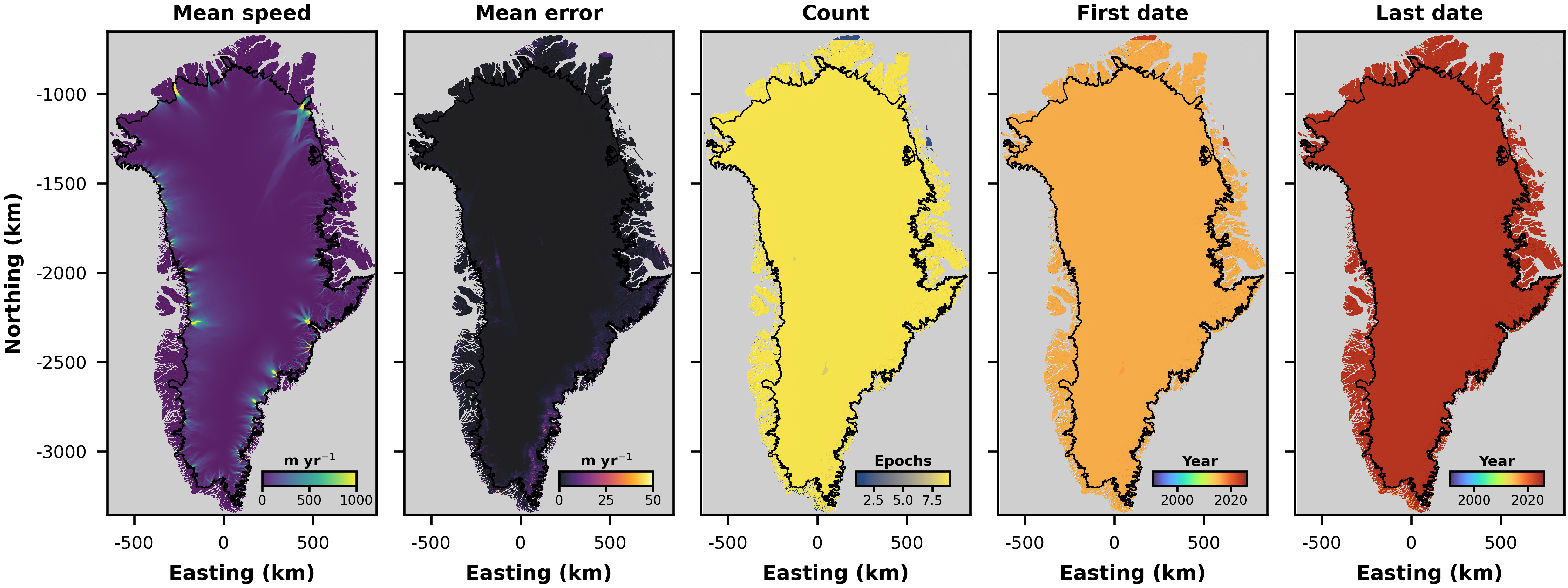

MEaSUREs annual data overview
Fig. 2.7: Overview of the Greenland MEaSUREs annual data.
Joughin, I. (2023). MEaSUREs Greenland Annual Ice Sheet Velocity Mosaics from SAR and Landsat. (NSIDC-0725, Version 5). [Data Set]. Boulder, Colorado USA. NASA National Snow and Ice Data Center Distributed Active Archive Center. https://doi.org/10.5067/USBL3Z8KF9C3. Date Accessed 04-21-2026.
Joughin, I., B. Smith, I. Howat, T. Scambos, and T. Moon. 2010. Greenland flow variability from icesheet-wide velocity mapping, Journal of Glaciology. 56. 415-430. https://doi.org/10.3189/002214310792447734.
Joughin, I., B. Smith, and I. Howat. 2018. Greenland Ice Mapping Project: ice flow velocity variation at sub-monthly to decadal timescales, The Cryosphere. 12. 2211-2227. https://doi.org/10.5194/tc-12-2211-2018.

2.8. ITS_LIVE Annual

The ITS_LIVE annual data provide annual (calendar year) averages of ice speed over Greenland derived from feature tracking applied to a range of satellite missions from 1985 to 2024. The ITS_LIVE velocity processing pipeline is described in Gardner et al. (2025) and Lei et al. (2022) and the mosaics are available to download from the ITS_LIVE website.

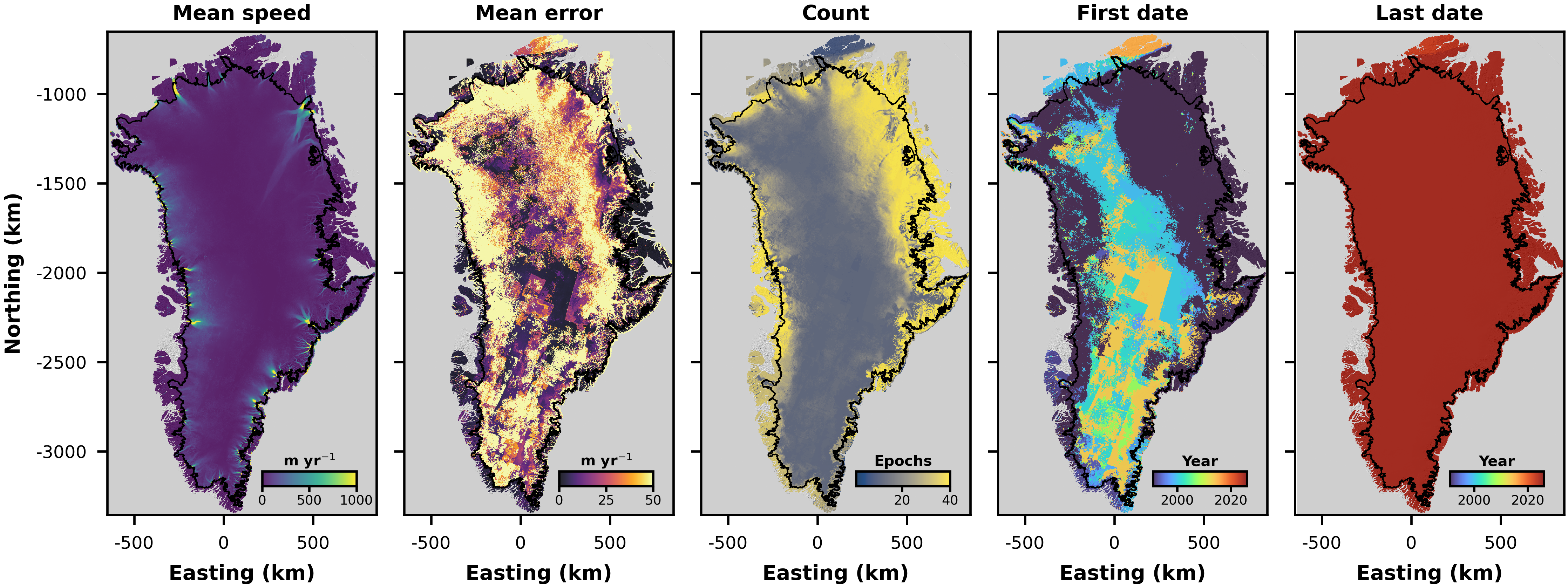

ITS_LIVE annual data overview
Fig. 2.8: Overview of the Greenland ITS_LIVE annual data.
Gardner, A.S., Greene, C.A., Kennedy, J.H., Fahnestock, M.A., Liukis, M., López L.A., Lei, Y., Scambos, T.A. and Dehecq, A., 2025. ITS_LIVE global glacier velocity data in near-real time. The Cryosphere, 19(9), pp.3517-3533. DOI: https://doi.org/10.5194/tc-19-3517-2025.

2.9. Mouginot Annual

The Mouginot annual data provide annual (July through June) averages of ice speed over Greenland derived from feature tracking applied to a range of satellite missions from 1972 to 2017. The velocity processing pipeline used to produce the mosaics is described in Mouginot et al. (2017) and the mosaics can be accessed at: 1972-1990, 1991-2000, 2001-2010, and 2010-2017.

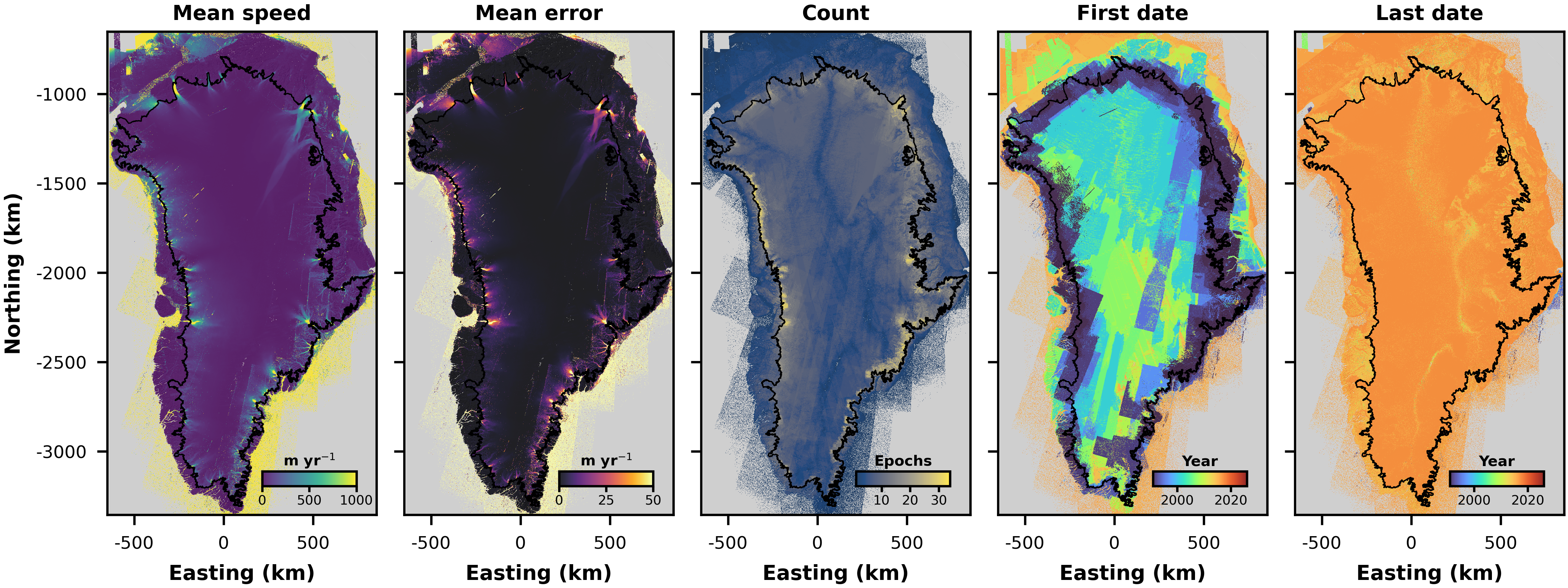

Mouginot annual data overview
Fig. 2.9: Overview of the Greenland Mouginot annual data.
Mouginot, J., Rignot, E., Scheuchl, B. and Millan, R., 2017. Comprehensive annual ice sheet velocity mapping using Landsat-8, Sentinel-1, and RADARSAT-2 data. Remote Sensing, 9(4), p.364. DOI: https://doi.org/10.3390/rs9040364.

2.10. ENVEO Annual

The ENVEO annual data provide annual (October through September) averages of ice speed over Greenland derived from a combination of SAR interferometry and intensity and coherence tracking applied to Sentinel-1 image pairs acquired during 2014 to 2020. The velocity processing pipeline used to produce the mosaics is described in Wuite et al. (2026) and the mosaics can be accessed here.

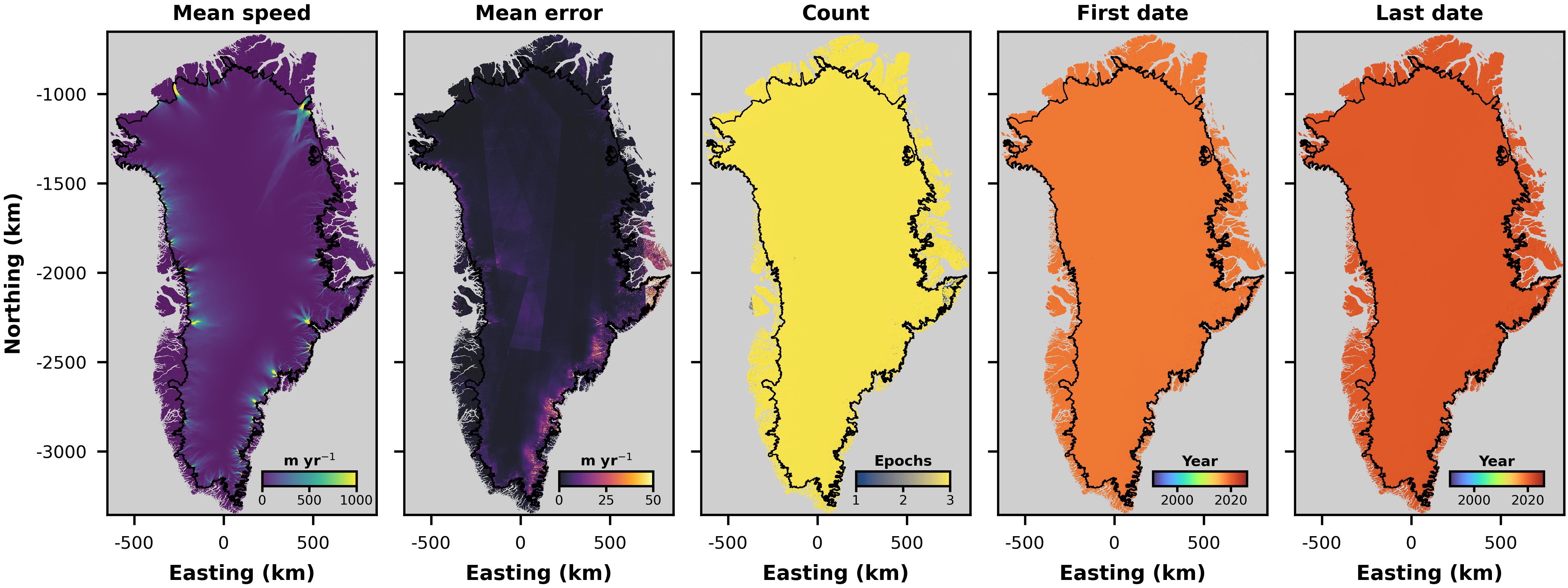

ENVEO annual data overview
Fig. 2.10: Overview of the Greenland ENVEO annual data.
Wuite, J., (2026): Ice sheet velocity for Antarctica and Greenland derived from satellite observations. Copernicus Climate Change Service (C3S) Climate Data Store (CDS), DOI: 10.24381/cds.0b96b838 (Accessed on 26-Apr-2026)

2.11. ESA CCI Winter

The ESA CCI Winter data provide winter measurements (from varying months) of ice speed over Greenland derived from RADARSAT and Sentinel-1 image pairs acquired during 2013 to 2018. The mosaics can be accessed at: 2013-2014, 2014-2015, 2015-2016, 2016-2017 and 2017-2018.

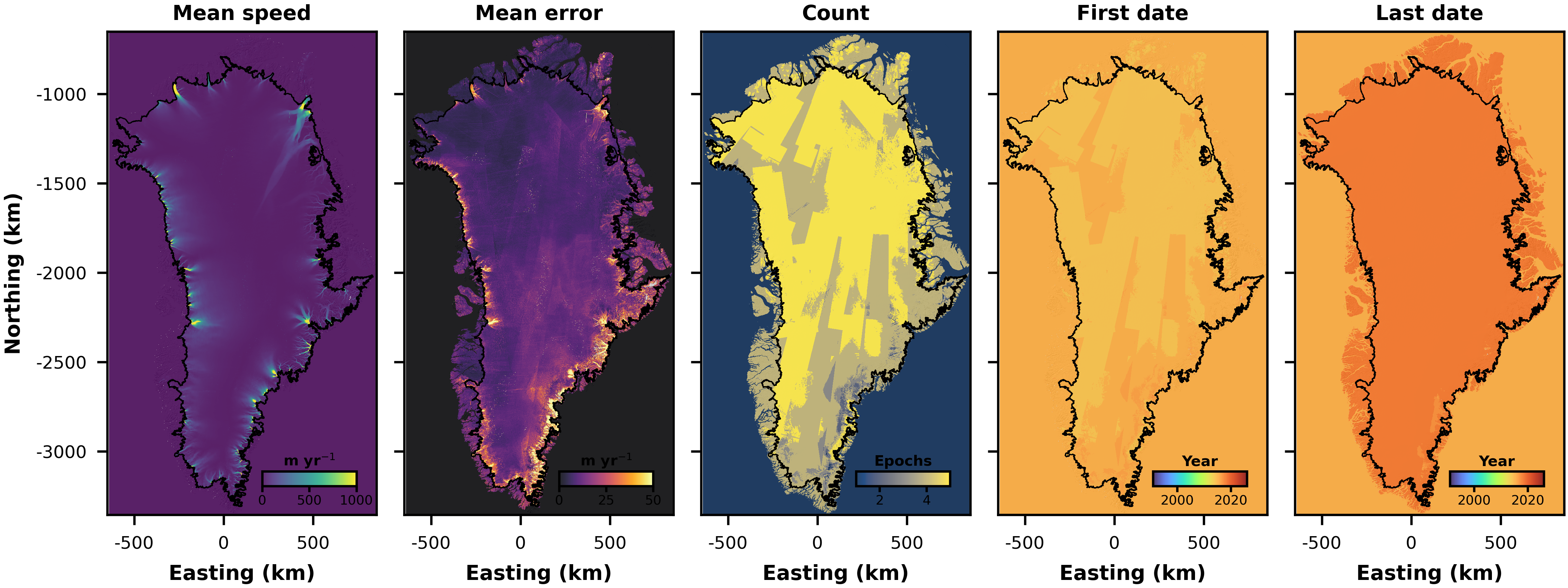

ESA CCI Winter data overview
Fig. 2.11: Overview of the ESA CCI Winter data.
ESA Greenland Ice Sheet CCI project team (2018): ESA Greenland Ice Sheet Climate Change Initiative (Greenland_Ice_Sheet_cci): Greenland Ice Velocity Map, Winter 2017-2018, v1.0. Centre for Environmental Data Analysis, 16/04/2026. https://catalogue.ceda.ac.uk/uuid/eaed9fba86c44e9c854dfbdec9d16b99

2.12. ESA CCI ERS-1 (1991-1992)

The ESA CCI ERS-1 (1991-1992) data provide winter measurements of ice speed over Greenland's northern and northwest basins, derived from intensity tracking of ERS-1 Ice phase (3-day repeat) data acquired between 29th December 1991 and 22nd March 1992. The data can be accessed from ESA Greenland Ice Sheet CCI project team (2016).

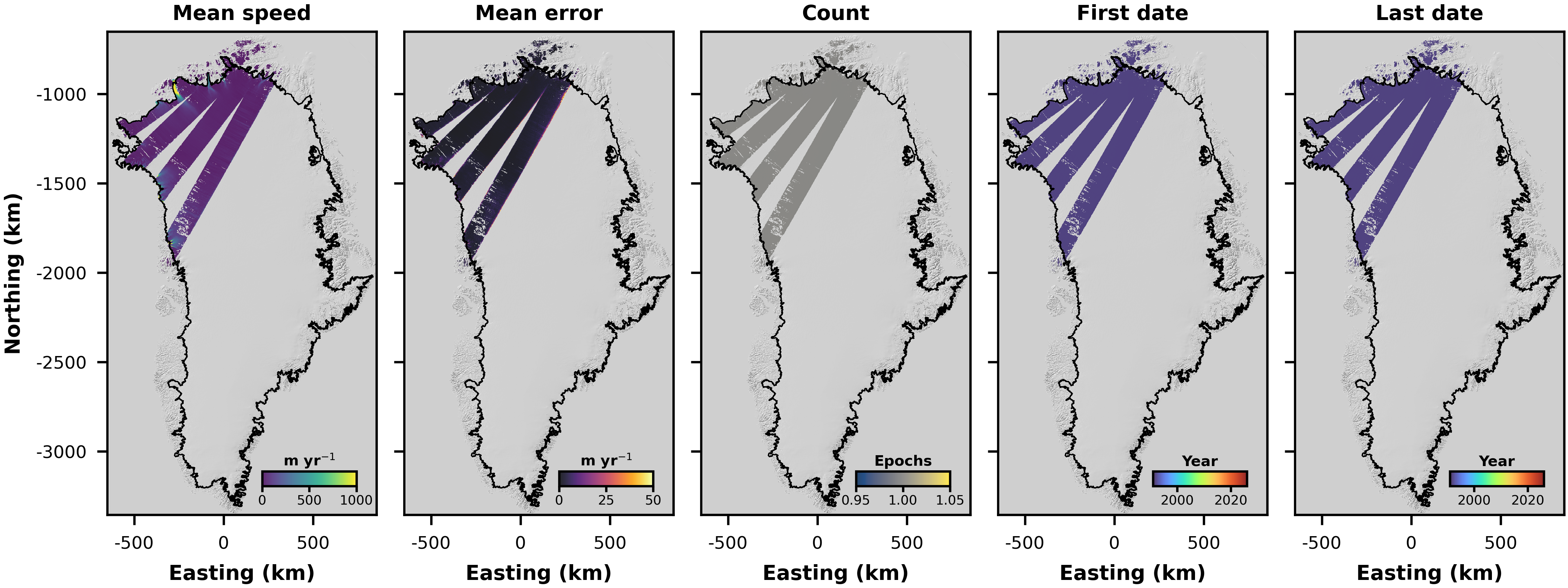

ESA CCI ERS-1 (1991-1992) data overview
Fig. 2.12: Overview of the ESA CCI ERS-1 (1991-1992) data.
ESA Greenland Ice Sheet CCI project team (2016): ESA Greenland Ice Sheet Climate Change Initiative (Greenland_Ice_Sheet_cci): Ice Velocity data for the Greenland Northern Drainage basin from ERS-1 for winter 1991-1992, v1.1 (June 2016 release). Centre for Environmental Data Analysis, 16/04/2026. https://catalogue.ceda.ac.uk/uuid/e4f39152bc50466f8887bd2a343cac93

2.13. ESA CCI ERS-2 (1995-1996)

The ESA CCI ERS-2 (1995-1996) data provide winter measurements of ice speed over Greenland's margin, derived from intensity tracking of ERS-2 data acquired between 3rd September 1995 and 29th March 1996. The data can be accessed from ESA Greenland Ice Sheet CCI project team (2016).

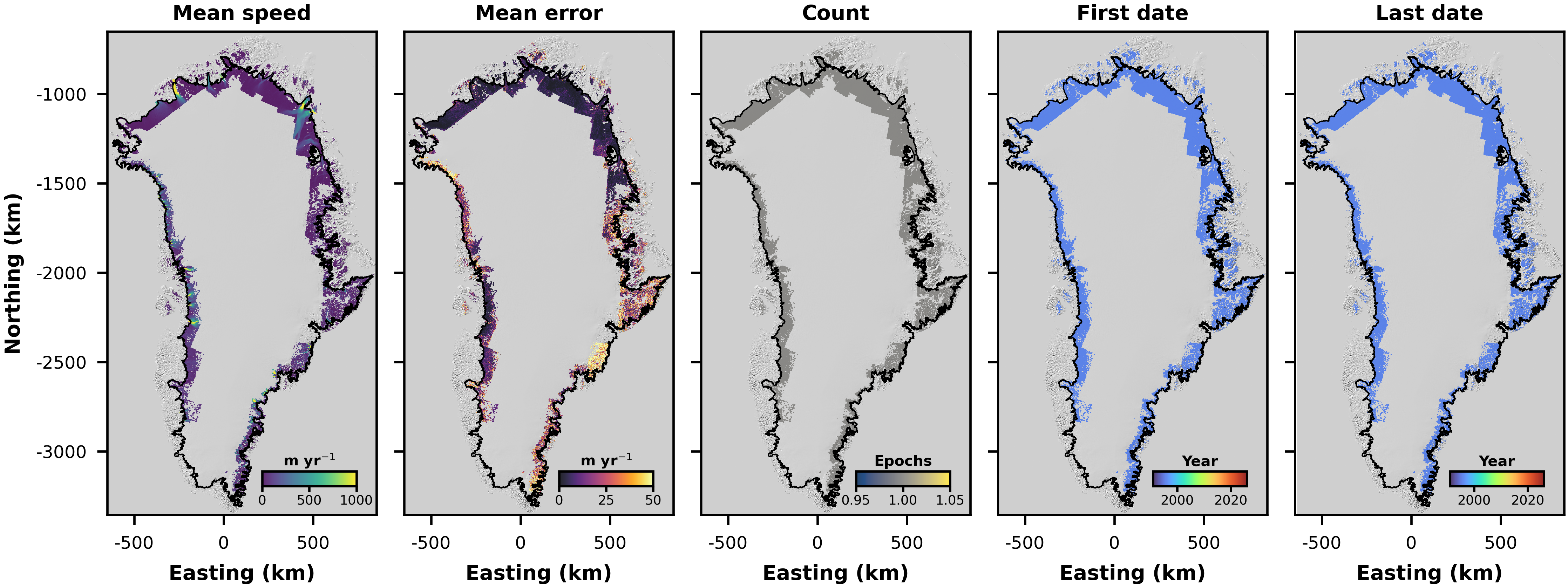

ESA CCI ERS-2 (1995-1996) data overview
Fig. 2.13: Overview of the ESA CCI ERS-2 (1995-1996) data.
ESA Greenland Ice Sheet CCI project team (2016): ESA Greenland Ice Sheet Climate Change Initiative (Greenland_Ice_Sheet_cci): Ice Velocity data for the Greenland Margin from ERS-2 for winter 1995-1996, v1.1 (June 2016 release). Centre for Environmental Data Analysis, 16/04/2026. https://catalogue.ceda.ac.uk/uuid/0b23b3c771db4fff8958196432d978cb

2.14. ESA CCI PALSAR

The ESA CCI PALSAR data provide winter measurements of ice speed over Greenland's margin, derived from intensity tracking of images acquired using the PALSAR instrument on the ALOS satellite between 20th December 2016 and 17th March 2011. The data can be accessed from ESA Greenland Ice Sheet CCI project team (2016).

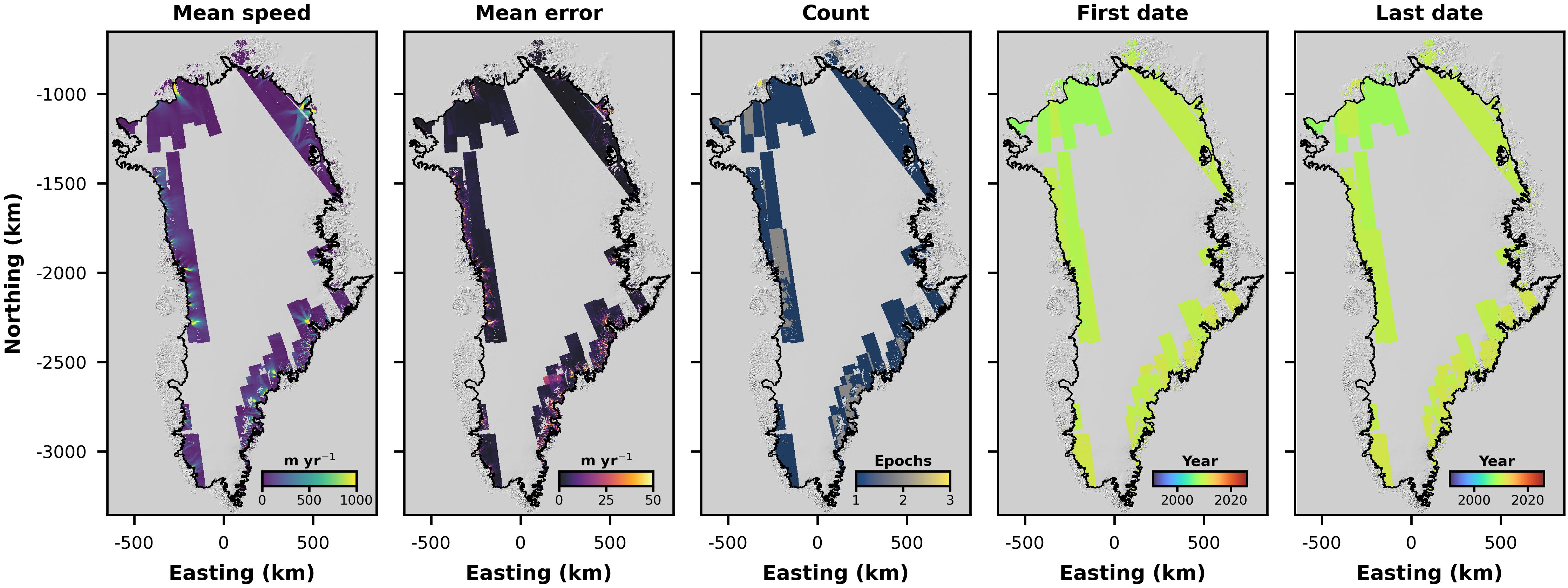

ESA CCI PALSAR data overview
Fig. 2.14: Overview of the ESA CCI PALSAR data.
ESA Greenland Ice Sheet CCI project team (2016): ESA Greenland Ice Sheet Climate Change Initiative (Greenland_Ice_Sheet_cci): Ice Velocity data for the Greenland Margin from the PALSAR instrument for 2006-2011, v1.1 (June 2016 version). Centre for Environmental Data Analysis, 16/04/2026. https://catalogue.ceda.ac.uk/uuid/84b5cf8380894d719b61deac5abf3bae

2.15. ESA CCI ERS-1/2 & Envisat

The ESA CCI ERS-1/2 & Envisat data provide measurements of ice speed for Hagen Brae, Helheim Glacier, Jakobshavn Isbrae, Kangerlussuaq Glacier, Petermann Glacier, Storstrommen, Upernavik Isstrom and Zachariae Isstrom/79 North Glacier. The measurements have been derived from intensity tracking of ERS-1, ERS-2 and Envisat data acquired between 1991 and 2010 (observation periods vary between glaciers). Upernavik Isstrom also contains velocity estimates derived from PALSAR imagery. The data for each basin can be accessed from: Jakobshavn Isbrae, Petermann Glacier, Kangerlussuaq Glacier, Helheim Glacier, Hagen Brae, Storstrommen Glacier, Zachariae and 79 North Glacier, and Upernavik Isstrom.

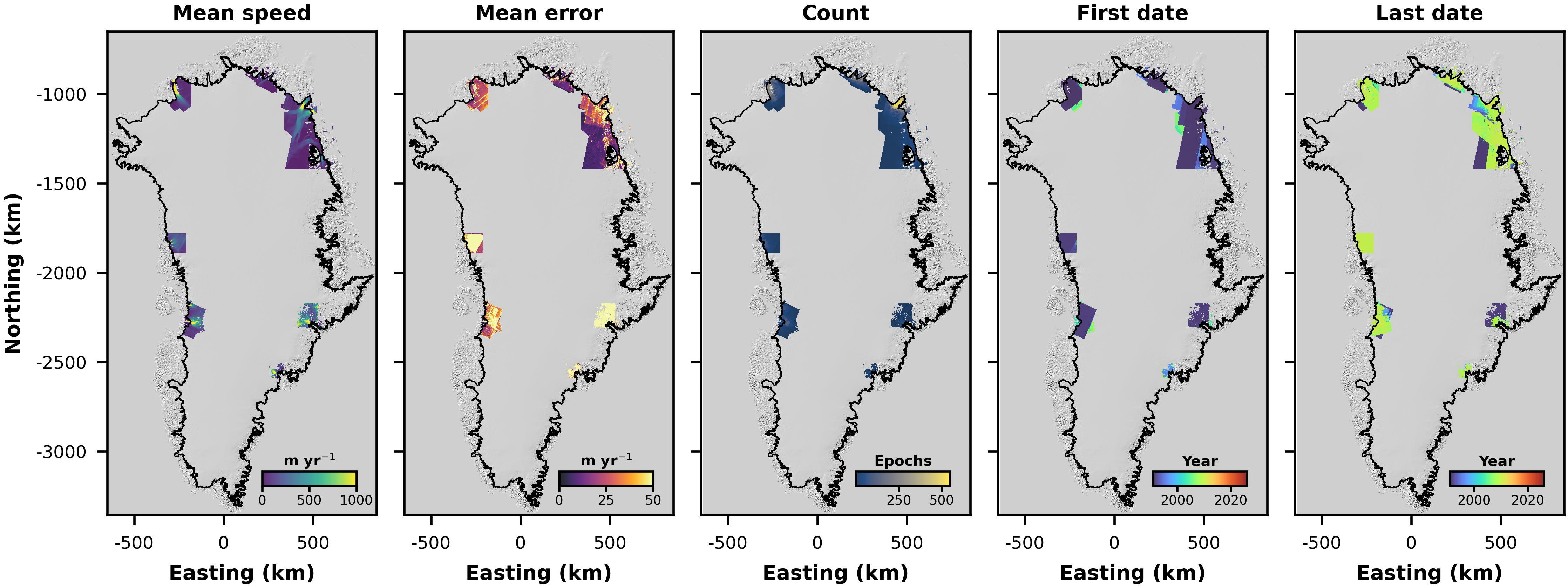

ESA CCI ERS-1/2 & Envisat data overview
Fig. 2.15: Overview of the ESA CCI ERS-1/2 & Envisat data.
ESA Greenland Ice Sheet CCI project team (2018): ESA Greenland Ice Sheet Climate Change Initiative (Greenland_Ice_Sheet_cci): Ice Velocity time series for the Jakobshavn glacier from ERS-1, ERS2 and ENVISAT data for 1992-2010, v1.2. Centre for Environmental Data Analysis, 16/04/2026. https://catalogue.ceda.ac.uk/uuid/a0d9764a3068439b997c42928ef739d2
ESA Greenland Ice Sheet CCI project team (2018): ESA Greenland Ice Sheet Climate Change Initiative (Greenland_Ice_Sheet_cci): Ice Velocity time series for the Petermann glacier from ERS-1, ERS-2 and Envisat data for 1991-2010, v1.1. Centre for Environmental Data Analysis, 16/04/2026. https://catalogue.ceda.ac.uk/uuid/22254b5608ab430fa360d0ff7e71c34e
ESA Greenland Ice Sheet CCI project team (2018): ESA Greenland Ice Sheet Climate Change Initiative (Greenland_Ice_Sheet_cci): Ice Velocity time series for the Kangerlussuaq glacier from ERS-1, ERS-2, Envisat for 1992-2008, v1.0. Centre for Environmental Data Analysis, 16/04/2026. https://catalogue.ceda.ac.uk/uuid/723067f77b8b43609079d721e3b4a3c7
ESA Greenland Ice Sheet CCI project team (2018): ESA Greenland Ice Sheet Climate Change Initiative (Greenland_Ice_Sheet_cci): Ice Velocity time series for the Helheim glacier from ERS-1, ERS-2 and Envisat data for 1996-2010, v1.1. Centre for Environmental Data Analysis, 16/04/2026. https://catalogue.ceda.ac.uk/uuid/17767027aa484505b7b732aee6619c74
ESA Greenland Ice Sheet CCI project team (2018): ESA Greenland Ice Sheet Climate Change Initiative (Greenland_Ice_Sheet_cci): Ice Velocity time series for the Hagen glacier from ERS-1, ERS-2 and Envisat data for 1991-2010, v1.1. Centre for Environmental Data Analysis, 16/04/2026. https://catalogue.ceda.ac.uk/uuid/27fc79c6e65f4302a18ec9788605c246
ESA Greenland Ice Sheet CCI project team (2018): ESA Greenland Ice Sheet Climate Change Initiative (Greenland_Ice_Sheet_cci): Ice Velocity time series of the Storstrommen glacier from ERS-1, ERS-2 and Envisat data for 1991-2010, v1.1. Centre for Environmental Data Analysis, 16/04/2026. https://catalogue.ceda.ac.uk/uuid/8381d3f3998143fd9b53c7086b7061e3
ESA Greenland Ice Sheet CCI project team (2018): ESA Greenland Ice Sheet Climate Change Initiative (Greenland_Ice_Sheet_cci): Ice Velocity time series for the Zachariae and 79Fjord area from ERS-1, ERS-2 and Envisat data for 1991-2011, v1.1. Centre for Environmental Data Analysis,16/04/2026. https://catalogue.ceda.ac.uk/uuid/2457272c747f4d6ca33cb40833bd9cc2
ESA Greenland Ice Sheet CCI project team (2018): ESA Greenland Ice Sheet Climate Change Initiative (Greenland_Ice_Sheet_cci): Ice Velocity time series for the Upernavik glacier from ERS-1, ERS-2, Envisat and PALSAR data for 1992-2010, v1.2. Centre for Environmental Data Analysis, 16/04/2026. https://catalogue.ceda.ac.uk/uuid/8d475d7d92894765ad1ddda16de0e610

2.16. ESA CCI CSK

The ESA CCI CSK data provide ice speed measurements of Jakobshavn Isbrae, derived from intensity tracking of 4-day repeat images acquired by COSMO-SkyMed between 2nd June 2012 and 25th December 2014. The data can be accessed from ESA Greenland Ice Sheet CCI project team (2018).

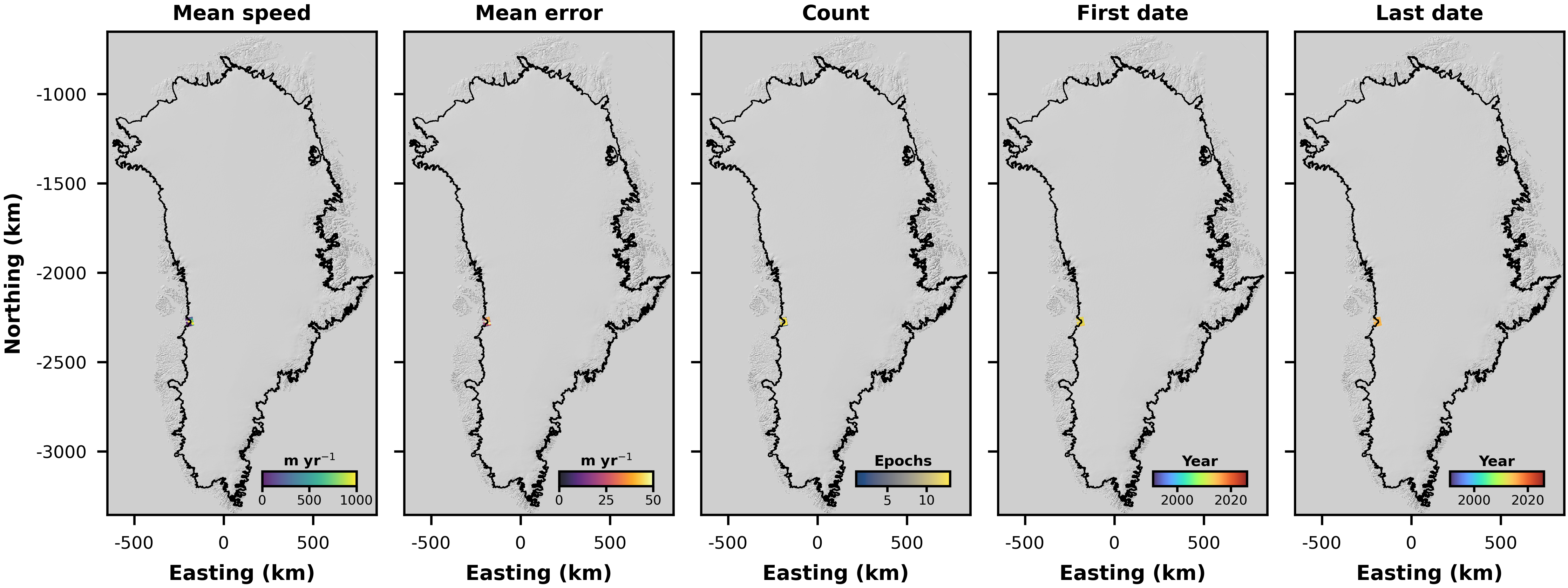

ESA CCI CSK data overview
Fig. 2.16: Overview of the ESA CCI CSK data.
ESA Greenland Ice Sheet CCI project team (2018): ESA Greenland Ice Sheet Climate Change Initiative (Greenland_Ice_Sheet_cci): Ice Velocity time series for the Jakobshavn Glacier from COSMO-SkyMed for 2012-2014, v1.0. Centre for Environmental Data Analysis, 16/04/2026. https://catalogue.ceda.ac.uk/uuid/2e54b40f184b44c797db36e192d2b679

2.17. ESA CCI Sentinel-2

The ESA CCI Sentinel-2 data provide ice speed measurements of 79 North Glacier, Docker Smith, Hagen Brae, Helheim Glacier, Jakobshavn Isbrae, Kangerlussuaq Glacier, Petermann Glacier, Upernavik Isstrom and Zachariae Isstrom. The measurements have been derived from intensity tracking of Sentinel-2 image pairs acquired in 2016 and 2017 (periods vary between glaciers). The data for each basin can be accessed from: Petermann Glacier, Kangerlussuaq Glacier, Jakobshavn Isbrae, Helehim Isbrae, Zachariae Isstrom, Hagen Brae, Docker Smith, 79 North Glacier, and Upernavik Isstrom.

ESA CCI Sentinel-2 data overview
Fig. 2.17: Overview of the ESA CCI Sentinel-2 data.
ESA Greenland Ice Sheet CCI project team (2019): ESA Greenland Ice Sheet Climate Change Initiative (Greenland_Ice_Sheet_cci): Optical ice velocity of the Petermann Glacier between 2017-05-01 and 2017-09-14, generated using Sentinel-2 data, v1.1. Centre for Environmental Data Analysis, 16/04/2026. https://catalogue.ceda.ac.uk/uuid/94f3670150de4bac90773806e26646f2
ESA Greenland Ice Sheet CCI project team (2018): ESA Greenland Ice Sheet Climate Change Initiative (Greenland_Ice_Sheet_cci): Optical ice velocity of the Kangerlussuaq Glacier between 2017-07-21 and 2017-08-20, generated using Sentinel-2 data, v1.1. Centre for Environmental Data Analysis, 16/04/2026. https://catalogue.ceda.ac.uk/uuid/aae643e1a7614c24b6b604dea82cad93
ESA Greenland Ice Sheet CCI project team (2018): ESA Greenland Ice Sheet Climate Change Initiative (Greenland_Ice_Sheet_cci): Optical ice velocity of the Jakobshavn Glacier between 2017-06-03 and 2017-09-08, generated using Sentinel-2 data, v1.1. Centre for Environmental Data Analysis, 16/04/2026. https://catalogue.ceda.ac.uk/uuid/cfe3102659f34d33b123b2a0043e4068
ESA Greenland Ice Sheet CCI project team (2019): ESA Greenland Ice Sheet Climate Change Initiative (Greenland_Ice_Sheet_cci): Optical ice velocity of the Helheim Glacier between 2017-05-01 and 2017-08-29, generated using Sentinel-2 data, v1.1. Centre for Environmental Data Analysis, 16/04/2026. https://catalogue.ceda.ac.uk/uuid/1e3fcdc14e2246c69fc54f0e1fe7a6ca
ESA Greenland Ice Sheet CCI project team (2019): ESA Greenland Ice Sheet Climate Change Initiative (Greenland_Ice_Sheet_cci): Optical ice velocity of the Zachariae Glacier between 2017-06-25 and 2017-08-10, generated using Sentinel-2 data, v1.1. Centre for Environmental Data Analysis, 16/04/2026. https://catalogue.ceda.ac.uk/uuid/ada968fd392d49fbbb07ac84eeb23ac6
ESA Greenland Ice Sheet CCI project team (2018): ESA Greenland Ice Sheet Climate Change Initiative (Greenland_Ice_Sheet_cci): Optical ice velocity of the Hagen Glacier between 2017-06-30 and 2017-08-14, generated using Sentinel-2 data, v1.1. Centre for Environmental Data Analysis, 16/04/2026. https://catalogue.ceda.ac.uk/uuid/e7fa45e785a64481960c3b140038c948
ESA Greenland Ice Sheet CCI project team (2019): ESA Greenland Ice Sheet Climate Change Initiative (Greenland_Ice_Sheet_cci): Optical ice velocity of the Døcker Smith Glacier between 2016-05-08 and 2016-05-18, generated using Sentinel-2 data, v1.0. Centre for Environmental Data Analysis, 16/04/2026 https://catalogue.ceda.ac.uk/uuid/88d02eb5a6c14952aa88028894d8a69c
ESA Greenland Ice Sheet CCI project team (2018): ESA Greenland Ice Sheet Climate Change Initiative (Greenland_Ice_Sheet_cci): Optical ice velocity of the 79Fjord Glacier between 2017-06-25 and 2017-08-10, generated using Sentinel-2 data, v1.1. Centre for Environmental Data Analysis, 16/04/2026. https://catalogue.ceda.ac.uk/uuid/f31e8e988c4144bebe13892b53d08e42
ESA Greenland Ice Sheet CCI project team (2018): ESA Greenland Ice Sheet Climate Change Initiative (Greenland_Ice_Sheet_cci): Optical ice velocity of the Upernavik Glacier between 2017-07-15 and 2017-08-14, generated using Sentinel-2 data, v1.1. Centre for Environmental Data Analysis, 16/04/2026. https://catalogue.ceda.ac.uk/uuid/84faf575c8e841a3a16476b05cbd657d

2.18. ESA CCI Sentinel-1

The ESA CCI Sentinel-1 data provide ice speed measurements of 79 North Glacier, Storstrommen, Hagen Brae, Helheim Glacier, Jakobshavn Isbrae, Kangerlussuaq Glacier, Petermann Glacier, Upernavik Isstrom and Zachariae Isstrom. The measurements have been derived from intensity tracking of Sentinel-1 image pairs acquired in 2014 and 2017 (periods vary between glaciers). The data for each basin can be accessed from: Petermann Glacier, Kangerlussuaq Glacier, Jakobshavn Isbrae, Helehim Isbrae, Zachariae Isstrom, Hagen Brae, Storstrommen, 79 North Glacier, and Upernavik Isstrom.

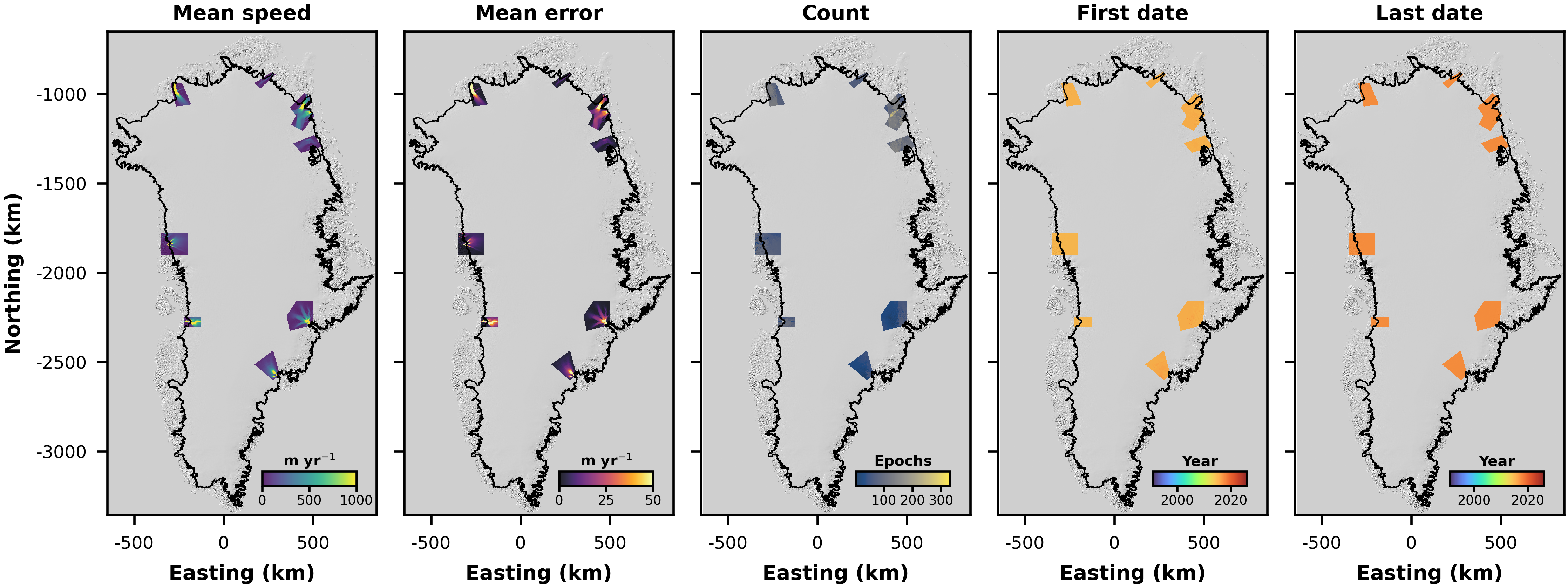

ESA CCI Sentinel-1 data overview
Fig. 2.18: Overview of the ESA CCI Sentinel-1 data.
ESA Greenland Ice Sheet CCI project team (2019): ESA Greenland Ice Sheet Climate Change Initiative (Greenland_Ice_Sheet_cci): Ice Velocity time series for the Petermann Glacier for 2015-2017 from Sentinel-1 data, v1.1. Centre for Environmental Data Analysis, 16/04/2026. https://catalogue.ceda.ac.uk/uuid/81332b9a10f14bda8a1a83b6463bb6de
ESA Greenland Ice Sheet CCI project team (2019): ESA Greenland Ice Sheet Climate Change Initiative (Greenland_Ice_Sheet_cci): Ice Velocity time series for the Kangerlussuaq Glacier for 2015-2017 from Sentinel-1, v1.1. Centre for Environmental Data Analysis, 16/04/2026. https://catalogue.ceda.ac.uk/uuid/925e3f0e807243e2936cc492f5207af6
ESA Greenland Ice Sheet CCI project team (2019): ESA Greenland Ice Sheet Climate Change Initiative (Greenland_Ice_Sheet_cci): Ice Velocity time series for the Jakobshavn Glacier for 2014-2017 from Sentinel-1 data, v1.1. Centre for Environmental Data Analysis, 16/04/2026. https://catalogue.ceda.ac.uk/uuid/e1c0c34e0cc942898b3626efd1dcc095
ESA Greenland Ice Sheet CCI project team (2019): ESA Greenland Ice Sheet Climate Change Initiative (Greenland_Ice_Sheet_cci): Ice Velocity time series for the Helheim Glacier for 2015-2017 from Sentinel-1 data, v1.1. Centre for Environmental Data Analysis, 16/04/2026. https://catalogue.ceda.ac.uk/uuid/0e289294f2c141bca545cd9d7fcb62d0
ESA Greenland Ice Sheet CCI project team (2019): ESA Greenland Ice Sheet Climate Change Initiative (Greenland_Ice_Sheet_cci): Ice Velocity time series for the Zachariae Glacier for 2015-2017 from Sentinel-1 data, v1.1. Centre for Environmental Data Analysis, 16/04/2026. https://catalogue.ceda.ac.uk/uuid/e3dbdc32f7b6476e949d52d8d3990205
ESA Greenland Ice Sheet CCI project team (2019): ESA Greenland Ice Sheet Climate Change Initiative (Greenland_Ice_Sheet_cci): Ice Velocity time series for the Hagen Glacier for 2015-2017 from Sentinel-1 data, v1.1. Centre for Environmental Data Analysis, 16/04/2026. https://catalogue.ceda.ac.uk/uuid/5c9935b8b8854baeb7a256446293c03b
ESA Greenland Ice Sheet CCI project team (2019): ESA Greenland Ice Sheet Climate Change Initiative (Greenland_Ice_Sheet_cci): Ice Velocity time series for the Storstroemmen Glacier for 2015-2017 from Sentinel-1 data, v1.1. Centre for Environmental Data Analysis, 16/04/2026. https://catalogue.ceda.ac.uk/uuid/1dd4c30a78d84e628cd8097bae3148fd
ESA Greenland Ice Sheet CCI project team (2019): ESA Greenland Ice Sheet Climate Change Initiative (Greenland_Ice_Sheet_cci): Ice Velocity time series for the 79-Fjord Glacier for 2015-2017 from Sentinel-1 data, v1.1. Centre for Environmental Data Analysis, 16/04/2026. https://catalogue.ceda.ac.uk/uuid/41e2300068b44fa190f24272dc08dcd0
ESA Greenland Ice Sheet CCI project team (2019): ESA Greenland Ice Sheet Climate Change Initiative (Greenland_Ice_Sheet_cci): Ice Velocity time series for the Upernavik Glacier for 2014-2017 from Sentinel-1 data, v1.1. Centre for Environmental Data Analysis, 16/04/2026. https://catalogue.ceda.ac.uk/uuid/ef5c6596cae548c6aea9dea181c7624c
